Data Diode DDSFX-10G
SFP modules for secure 10G transfers

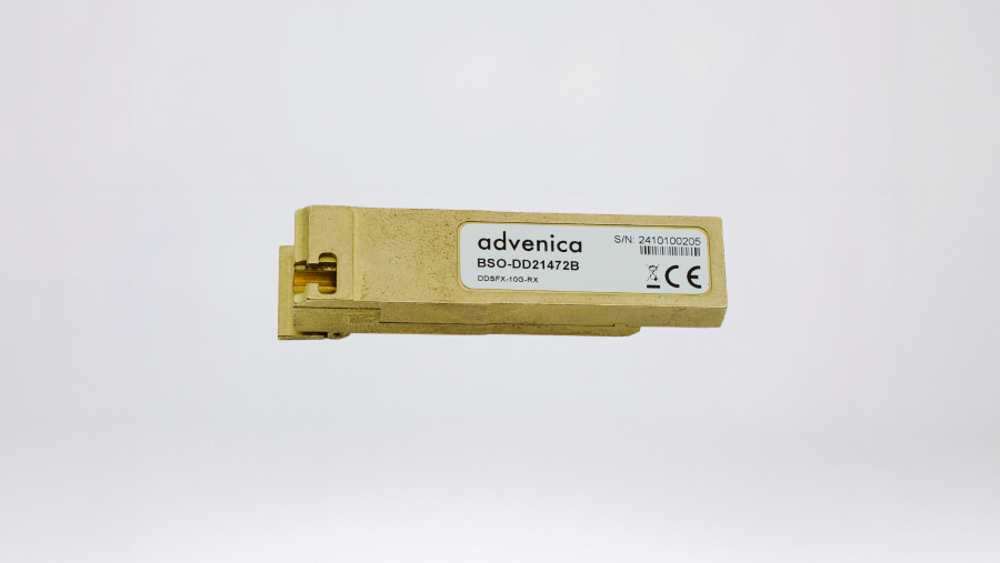

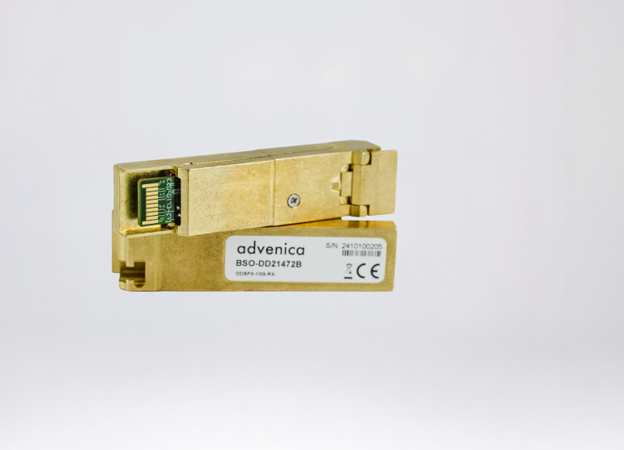

DDSFX-10G is a hardware-based data diode with 10-gigabit optics that is compliant with the industry-standard SFP specification.
Send and receive data securely
– while being 10km apart
Our smallest but fastest data diode
This hardware enforced data diode with a uniquely small form factor, enables you to send and receive data from two separate networks, where the source and destination can be up to 10km apart.
The transmitter (data source) can transfer data up to 10Gbps securely to a receiver (data destination) that can be located up to 10km away.
Hardware agnostic solution
You can use your own hardware for complying with environmental requirements such as industrial or military rugged or hardware with specific approvals.
How to use

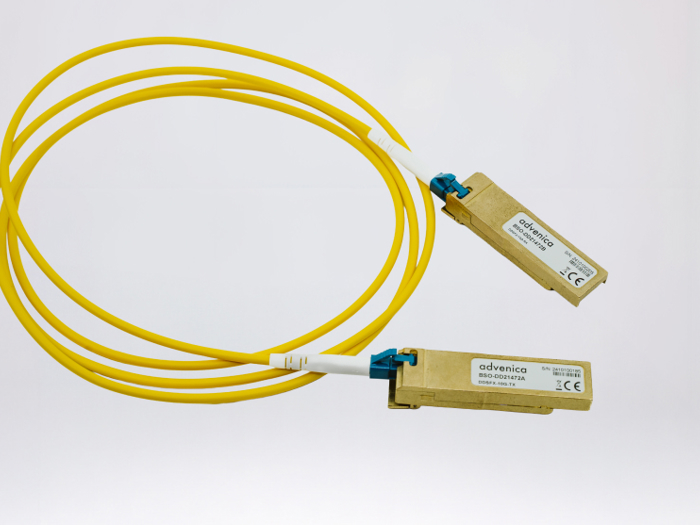

Simply plug in the SFPs to supported hardware and connect the two units with a fiber cable. The DDSFX shows up as a regular network interface which can be easily configured on either Linux or Windows.
We are happy to advise on compatible hardware, just contact us.
SFP-based data diode with endless possibilities
Key features
- Hardware enforced data diode
- SFP form-factor enables flexible installation options
- Sender and reciever can be in two separate physical locations
- Physically resilient enclosure for demanding applications in industrial, transportation and harsh environments
Technical brief
- 10 gigabit optical fiber interfaces
- Low power dissipation
- Compliant with the SFP MSA for seamless integration into existing IT environments
- Can operate in extreme temperatures up to +70 degC
- Only one optical opening to connect a single fiber, preventing faulty installations
Extended functionality with proxy services
For use cases requiring bidirectional communication, DDSFX can be combined with the Advenica Data Diode Engine, a standalone proxy software solution that manages data transfer through data diodes.
The Data Diode Engine is optimised for efficient and secure data transfer and supports a range of application specific software services for use cases such as file transfer or sensor data export.
Contact us
Book a demo, meeting or request a quote. We are at your service.
Rickard Nilsson
COO
Certifications & Approvals
Approvals available
DDSFX holds non-public approvals from authorities. Defence and authority customers prefer this data diode.
